Vanguard Cranked Brackets are manufactured from 40mm x 8mm steel bar, galvanised after manufacture to BS EN ISO 1461 to offer weather protection for up to 25 years

The cranked bracket is ideal for securing the Vanguard Rotating Anti Climb System over fences, walls and gates. It can also be used under building eaves to prevent unauthorised access to flat roofs, vulnerable windows, etc.

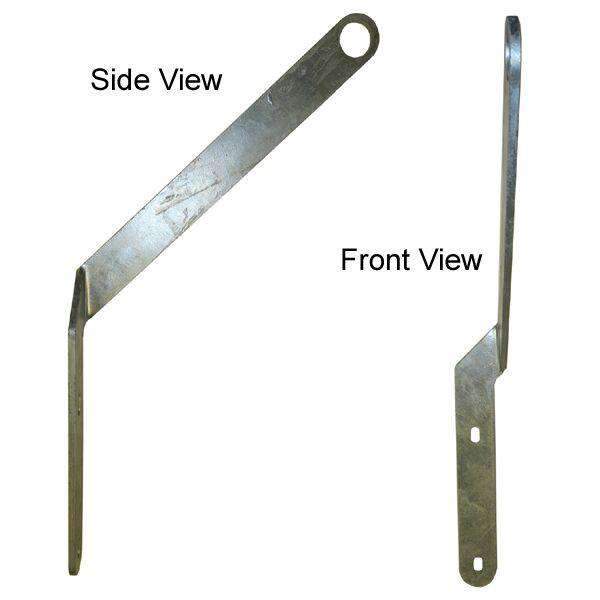

This bracket features a 45 degree crank with a hole at the end to accommodate a Vanguard Central Shaft. The lower leg section of the bracket features 2 Nr. fixing slots to accommodate 8mm fixings to walls, or fences, etc.

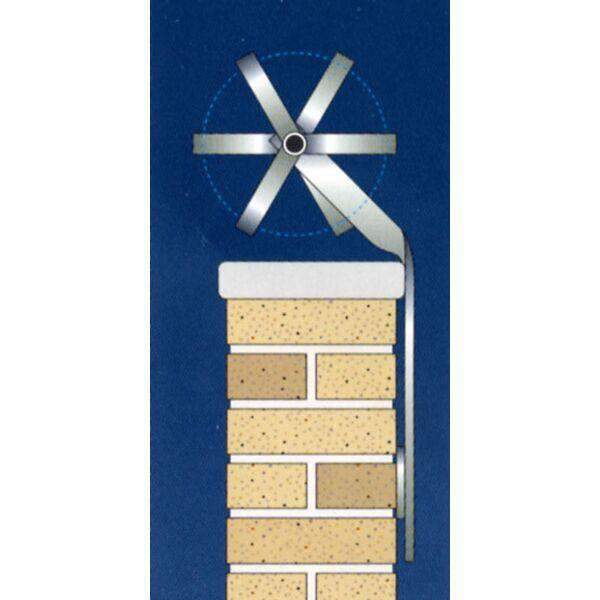

When this bracket is installed to position the Vanguard Anti-climb Barrier above gates, fences or walls, the bracket can be fixed to either side of the support structure and for maximum flexibility can be cranked toward or away from the approach side of the structure.

Optional Extras:

Fixings – fixings are not included with brackets as different types of fixing will be required for different types of installation, materials to fix to, etc. We do however offer a range of fixings which can be ordered separately.

Colour Finish Available – as a chargeable optional extra, Brackets can be over painted in any standard RAL colour – with a baked on powder coat paint. Typically painting lead-time is 7-10 days, although we may be able to achieve a faster turnaround for urgent requirements – call for details and prices; 01273 475500

See an example below of black overpainting on one of our historic building Vanguard installations

Need help choosing your Vanguard components? –

Call our friendly experts if you`d like any help or advice to ensure that you order everything you need, or to discuss the best options for your application;

Tel: 01273 475500 (Mon-Fri 09.00-17.30 hrs)
